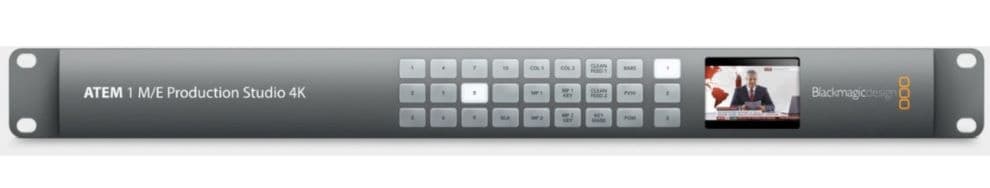

Blackmagic ATEM 1 M/E Production Studio 4K

Blackmagic ATEM 1 M/E Production Studio 4K


Blackmagic ATEM 1 M/E Production Studio 4K




Create stunning multi camera live production with the world’s most advanced production switchers!
ATEM switches between SD, HD or Ultra HD video standards so you can form exciting live production with a wide range of video sources such as cameras, disk recorders and slide shows or animation from computers.

You get powerful features such as chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view and more!

The more advanced models include features such as up to 20 SDI inputs, SuperSource multi-layer engine, full motion DVE, stinger transitions, larger media pool with full motion clips and up to an incredible 6 auxiliary outputs!


Blackmagic ATEM 1 M/E Production Studio 4K, back

Connections:

  • Video inputs: 11 (10 active)
  • Video outputs: 10
  • Auxiliary outputs: 3
  • SDI transmission: 270Mb, 1.5G, 3G, 6G
  • Audio inputs: 2 x XLR, 2 x RCA
  • Audio outputs: 2 x XLR program
  • Timecode connections: Not available
  • Reference input: Tri-sync or black burst
  • Frame synchronized video inputs: 10
  • SDI video inputs: 10 x SD/HD/Ultra HD 4K 10 bit switchable
  • 2 channels of embedded audio
  • HDMI video input
  • 1 x HDMI type A. SD/HD/Ultra HD 4K 10 bit switchable. 2 channels of embedded audio
  • Analog audio outputs: 2 x XLR
  • SDI audio outputs: 2 channels embedded in all SDI outputs
  • SDI program outputs: 2 x SD/HD/Ultra HD 4K 10 bit switchable
  • HDMI program outputs: 1 x HDMI type A, SD/HD/Ultra HD 4K 10 bit switchable
  • SDI program output converted to lower resolution: 1 x 10 bit (Ultra HD 4K to HD)
  • SDI preview output: 1 x SD/HD/Ultra HD 4K 10 bit switchable
  • Multiview : 1
  • Multiview SDI outputs: 1
  • HDMI multiview outputs: 1
  • Control panel connection: Ethernet supports BaseT 10/100/1000.
  • Allows direct connection between the panel and the chassis, or via a network
  • Tally Output: Connecting the Blackmagic Design GPI
  • and Tally Interface via ethernet (not included)
  • Computer Interface: 1 x USB 2.0 port

Standard:

  • SD video standard: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standard: 720p50, 720p59.94 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94 1080i50, 1080i59.94
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97
  • SDI standard compliance: SMPTE 259M, SMPTE 292M, SMPTE 424M
  • Video Sampling: 4:2:2
  • Color accuracy: 10 bit
  • Color Space: REC 601, REC 709, REC 2020
  • Computer HDMI input resolutions
  • 720 x 480i 59.94Hz
  • 720 x 576i 50Hz
  • 1280 x 720 59.94Hz
  • 1280 x 720 50Hz
  • 1920 x 1080 50Hz
  • 1920 x 1080 59.94Hz
  • 3840 x 2160 23.98Hz
  • 3840 x 2160 24Hz
  • 3840 x 2160 25Hz
  • 3840 x 2160 29.97Hz

Specifications:

  • Primary Keys: 4 with chromatic/linear/luminance key
  • DSK Secondary Keys: 2
  • Talkback: Not available
  • Audio Feedback: Not available
  • Chromatic Keys: 4
  • Luminance/Linear Keys: 7
  • Transitions (Stinger/DVE): 1 stinger, 1 DVE
  • Compositional Levels: 8
  • Pattern Generators: 7
  • Color Generators: 2
  • DVEs with 3D edges and shadows: 1
  • Compatible Control Panels: ATEM 1 M/E Broadcast Panel (preferred); ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel
  • ATEM Software Control (included)

Media Players:

  • Media Players: 2
  • Channels: Fill signal and key for each player
  • Archive capacity for frames: 32 with fill signal and key
  • Storage capacity per clip: 2 with fill signal and key
  • Clip duration in 720 HD: 1600 frames
  • Clip duration in 1080 HD: 720 frames
  • Clip duration in Ultra HD: 180 frames
  • Maximum clip duration in NTSC/PAL: 3600 frames
  • Compatible frame formats: PNG, TGA, BMP, GIF, JPEG and TIFF
  • Compatible video formats: TGA
  • Compatible audio formats:WAV, MP3 and AIFF

Monitoring:

  • Multiview monitoring: 1 x 10 frames
  • Reconfigurable Panels: 8
  • Tally: Red for program, green for preview
  • Source labels: Yes
  • Multiview video output standard: HD

Display:

  • Interface: Minimum monitor resolution of 1366 x 768
  • Front Panel: Integrated LCD display and 42 LED buttons for switching auxiliary sources

Processing:

  • Color space conversion: Real-time conversion hardware
  • Processing delay: < 2 lines
  • Audio Mixer: 12 inputs, 2 channels Audio Follow Video function available Audio level and peak monitoring Master gain control Analog outputs can be used for independent monitoring
  • 4K to HD conversion: Yes, 1 x program output

Software:

  • Control panel included: Free ATEM Software Control for Mac 10.12 Sierra, Mac 10.13 High Sierra or later, and Windows 8.1 46-bit or Windows 10 64-bit: Software updates
  • Via direct USB 2.0 connection to Mac OS or Windows. Includes ATEM Setup utility
  • Configuration: Via ATEM Software Control Panel, except for the chassis IP address, which can be configured using ATEM Setup, connected via USB

Installation:


  • Physical Installation: 1 rack unit

Environmental Specifications:

  • Operating temperature: 0° to 40° C
  • Storage temperature: -20° to 60° C
  • Relative humidity: 0% to 90% non-condensing
