SENSOR – Medium-Power FM Transmitter

SENSOR FM Transmitters combine low energy consumption, exceptional reliability, and advanced connectivity. Their sound is warm and clear, thanks to a high-fidelity design with very low distortion, excellent stereo separation, and a high signal-to-noise ratio.

Composed SYNAPSE Exciter and CELL amplifier, SENSOR is DRM and IBOC ready.

Our new 5000W FM Transmitter SENSOR 5000!!!

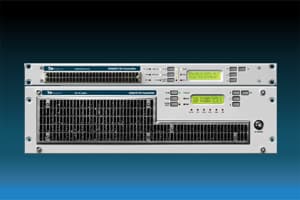

SENSOR 5kW FM Transmitter






MAIN KEY FEATURES

  • Modular architecture with SYNAPSE exciter and CELL RF amplifier in separate units
  • Extreme robustness, high reliability, and easy maintenance lower ownership cost
  • Remote Access via HTML5 Web, TCP/IP, SNMP, Email, and Telegram
  • Weekly Power Derating Scheduler optimizes energy consumption by allowing multiple configurable power settings for each day.
  • Unmatched Audio Fidelity and versatile Audio Inputs
  • High efficiency with up to 88% RF performance and low power consumption.
  • High SNR (85 dB), stereo separation (65 dB), ultra-low distortion (0.01%)
  • DRM and IBOC ready
  • One-band processor with soft limiter: ensuring high volume and big sound
  • 6th-generation 50V LDMOS with >65:1 VSWR tolerance and high ruggedness for FM and ISM applications
  • Standards Compliance: Meets ETSI, CCIR, FCC requirements.
  • Plug-in power supply, wide input range 90-250V
  • Aluminum body, tropicalized PCBs, dust filter, and air-ducted design protecting PCBs from corrosion
  • Planar RF amplifier on copper carrier for improved heat dissipation and simplified maintenance



ADVANTAGES OF MODULAR ARCHITECTURE

When the RF amplifier and exciter are integrated into a single enclosure it can complicates maintenance.

The SENSOR modular system overcomes these challenges by making each component independent and self-sufficient, greatly simplifying troubleshooting and fault resolution.

Another key advantage is that both, the FM Exciter and the RF Amplifier, are designed to operate independently and, each of them, includes all necessary components such as power supply, fans, control logic, output filter, and protections. Testing or repairing it, whether on-site or in the lab, requires only a dummy load and an standard power cord, without the need for special tools.






AVAILABLE OPTIONS

A wide range of options is available, to reduce the need of any additional equipment:

  • High-performance stereo encoder.
  • Automatic audio input backup.
  • Digital audio inputs: AES/EBU, IP Streaming (AoIP), USB Pen Drive playback.
  • Dynamic RDS encoder with TMC function
  • Web TCP/IP and SNMP connectivity for remote access
  • Frequency bands starting from 60MHz (Chile and Brazil), including Japanese (JPN) and Russian (OIRT 66-74MHz) standards.
  • External clock input for SFN synchronization
  • Digital composite input at 192kHz


Plug-In Power Supply

The most reliable Power Supply of the market

Plug-In Power Supply

WEB Remote Control

  • Remote access via TCP/IP through Web interface and SNMP v1/v2 sends real-time status and alarm notifications via email and Telegram.
  • Notifications are fully configurable for immediate alerts or periodic updates at defined intervals.
Web Remote Control






Weekly scheduler Power Derating

The output power can be programmed depending on the time needed for energy consumption optimization management.

Plug-In Power Supply

Planar Design

  • Planar Design: Improves thermal management and layout compactness
  • Up to 88% RF and 79% total efficiency
  • Robust 50 V LDMOS, 6th gen planar tech, VSWR tolerance > 65:1
Web Remote Control



Example of block diagram of SENSOR 5kW FM Transmitter




Final test and Burn-In

An extended burn-in procedure is used to thoroughly test the transmitters over many hours of continuous operation, ensuring reliability and reducing the risk of faults caused by early component aging.

Burn-in



ADITIONAL FEATURES

Reliability and Robustness

  • Engineered for Durability: All components are over-dimensioned for harsh conditions.
  • Air Filter: Easy to clean or replace
  • Aluminium Body: Light and strong
  • Tropicalized PCBs and Wiring: Withstands extreme conditions
  • Over-Dimensioned Components: Heatsinks, fans, LDMOS, dummy loads, power supply
  • Integrated Protections: AC filtering, lightning, overvoltage spikes
  • Mechanical Design: Compact 2U rack, optimized airflow, efficient heat management, durable fasteners
  • Heavy-Duty Fasteners: 5mm screws for secure assembly and easy access
  • Optimized Cooling: Ducted airflow and dedicated heatsinks reduce thermal stress



N+1 and Backup Systems

  • Supports multiple standby configurations
  • No extra control unit needed
  • N+1 connector with 7 profiles
  • Relay outputs and opto-isolated inputs



Packaging and Transport Protection

  • High-quality packaging ensures resistance to shock, vibration, handling stress, and impact.
  • Optimized weight and size facilitate logistics and make handling easier for operators.



Integrated Protections

  • Hardware protection (nanosecond response)
  • Software derating (non-critical faults)
  • Over-temperature and cooling failure detection
  • Amplifier fault monitoring
  • AC over/under voltage protection
  • RF output open/short circuit detection
  • AC mains filtering
  • Lightning and surge protection
  • Delayed energization and surge protection on the AC input prevent electrical stress during power-up and voltage transients.



Dynamic RDS Encoder option

Fully dynamic FM broadcast RDS encoder with independent communication port

Control interface based on ASCII commands and UECP protocol

Text features include dynamic PS, parsing, scrolling, tagging, fixed messages, scheduling and HTTP reading

Excellent compatibility with broadcast automation systems

Control software includes powerful Windows GUI application

Supports control from external PHP/ASP scripts

Easy and fast set-up

Excellent spectral purity, direct digital RDS signal synthesis; compliant with EN 50067 / EN 62106

Two switchable program sets (with optional DSN and PSN setting)

Internal real-time clock incl. backup battery

No special 19 kHz input needed - pilot tone internally recovered from MPX signal using digital PLL
