Mixer Audio


A mixing console is an essential purchase on the road to build a Radio Studio.

The Audio Mixer Console is often call mixing desk or broadcasting desk.

The audio console is the heart of the studio; it’s used to control anything that the listeners hear on air. There is an input for every channel.

The slider on the audio console amplifies the incoming signalfrom a variety of sources, mixes them and route it to a unique output.
The Mixer Console will allow to seamlessly, without a break switch from a computer, a Turntable and/or CD player, Microphone and a Hybrid Phone input, smoothly, without interruption, and it will consistently produce the audio that you expect.

Broadcast Radio Audio Consoles are classified in two types:

  • PA (public address), Live Mixers Sound designed for Musician Studio or Live applications
  • Broadcast Radio Consoles designed specificallyfor on-air talent ease of use.

When you turn a microphone on or off, a Broadcast Radio Console will mute any speakers and illuminate an “on air” light. When you turn a CD Player, Phone or Computer channel on, often it will “trigger” that input so it starts playing immediately.

While Analog audio consoles have the physical audio flow directly through the console’s circuitry, many radio stations now use Digital Audio Consoles
Digital Audio Consoles are actually a remote control for a Mix Engine (often located in the rack room).

It ultimately depends on the budget if whether direct to a Studio or PA Live sound Mixer, an Analog or Digital Professional Broadcast mixer console.

What is the best audio mixer to buy?

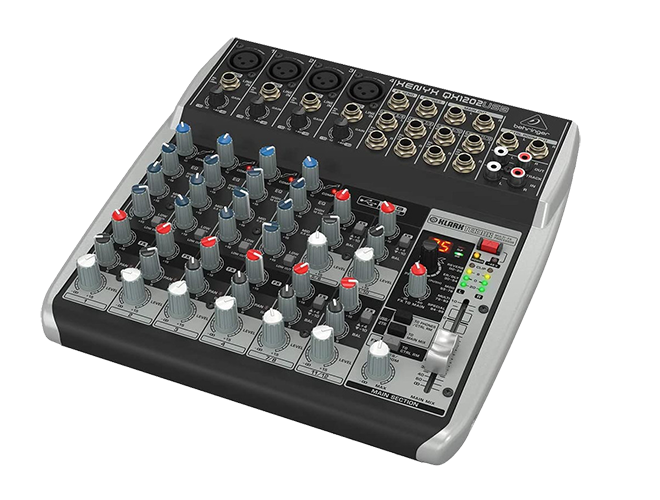

One of the best for beginners is the Behringer 802, at around €100, Next step is the Behringer DX2000USB, which offers more features and inputs, in the same price range (€250.00/€350) there are many good products: Mackie PROFX8 V2 Mixer, Behringer XENYX 1202FX or BEHRINGER XENYX 1204USB

You are oriented toward an Broadcast Mixer Console?

Broadcast Audio Mixers, Broadcast Audio Consoles, Mixing Consoles, Radio Mixer, Digital Console, Digital Mixer or Digital Broadcast Mixing Console, ON air Broadcast Console.
There are many ways to name them but all of them are the same meaning: to get all the functions needed on a ON AIR radio show with specific Broadcast functions.

There is a wide range of choice of manufactures, models and prices.
It can be a Digital or a Analog (the most popular), compact or Modular where is possible to choose how many modules to add and the type of them.

The Digital Mixer is a completely digital system. It runs audio over IP, this means nothing is connected to the mixer directly. Instead, everything is plugged into the mix engine. The console itself is just a control centre for each channel, so it's easy to move around without pulling on any cables.

The typical features on the Broadcast Consoles are:

  • All Balanced inputs and outputs
  • N channel inputs
  • 1 o more Telephone Hybrids integrated inputs telephone opto-coupled
  • A/B input control
  • Good quality Sliders
  • Mono inputs for Microphone
  • N Stereo Lines inputs
  • N Digital AES/EBU input
  • Two or three band or equalizer tone control on all input channels
  • Meeting function on telephone hybrid
  • N Independent Balanced Analog Stereo Outputs
  • N Independent Digital AES/EBU Outputs
  • Control Room and Studio functions with monitor mode selector & with mute logic
  • Internal USB Audio Board for extra versatility connection
  • Output opto-coupled command
  • Shielded buses
  • Stereo Led Meters
  • Remote fader function
  • Bluetooth Inputs

There are many manufacturer all of them with optimum quality and specification, some of the most popular are DM Broadcast, AEV, AXEL, Audio Art, Studer, D&R, AEQ, AXIA, Arrakisand more.

Some popular models are:

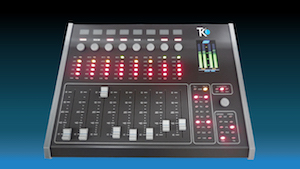

  • AEV-ACUO908

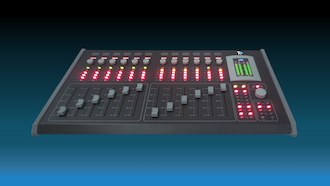

  • AEV-ACUO912

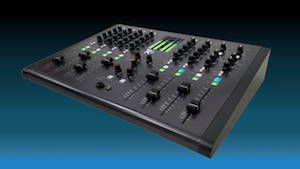

  • DM-M8

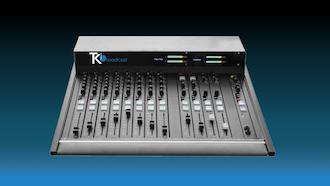

  • DM-M16

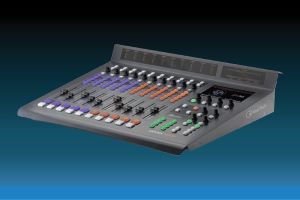

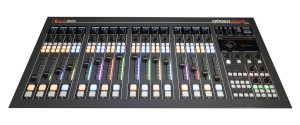

  • AXEL-Oxygen 3000D
  • Studer-1500 12F
  • Studer-1500 6F
  • Audio Art-AIR 1
  • Audio Art-AIR 4
  • Audio Art-AIR 5
  • Arrakis ARC-8
  • Arrakis ARC-10UP
