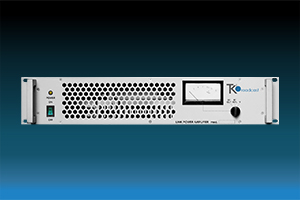

STL Link Amplifier
STL Studio Amplifier Link FM Radio Equipment
Studio Amplifiers Microwave Links
Teko Broadcast Link Amplifiers, strength the STL Link Transmitter Signal when cover very long distance is necessary-up to 200W power-Immediate delivery.
Designed to transport audio and video signals from the studio to the transmission sites maintaining high quality.
DESIGN
These radio links were specifically designed to comply with the latest international standards and the requirements of advanced broadcasters, meeting tighter specifications than usually required, at an affordable cost.
Great care was spent into producing a Hi-Fi-quality modulated signal, with low residual noise and distortion. The RF signal is also free from spurious and harmonic components to a higher degree than required by CCIR, European, USA and most other national standards.
AMPLIFIERS RADIO LINK MODELS
| MODEL | DESCRIPTION |
|---|---|
| TK-STL-A1-50 | Link Amplifier Band 170 - 490MHz (band max ±10MHz), 50W |
| TK-STL-A3-50 | Link Amplifier Band 820 - 960MHz (band max ±10MHz), 50W |
| TK-STL-A1-100 | Link Amplifier Band 170 - 490MHz (band max ±10MHz), 100W |
| TK-STL-A1-200 | Link Amplifier Band 170 - 490MHz (band max ±10MHz), 200W |
| TK-STL-A5-20 | Link Amplifier Band 1.4 - 2.5 GHz (banda max ±5MHz), 20W |
| Parameter | Value |
|---|---|
| FREQUENCY RANGE: | 170 - 960 MHz in 20MHz sub-bands |
| MODULATION: | FM |
| INPUT POWER: | 10 W Max |
| POWER OUT: | 50W (ASG), 100W(ASG-H), 300W (ASG-UH) |
| SPURIOUS EMISSION: | < -80dB |
| ARMONIC EMISSION: | < -75 dB |
| ASYNCRONOUS AM S/N Ratio: | >65 dB ref 100% AM 400Hz |
| SYNCRONOUS AM S/N Ratio: | >60 dB ref FM 75KHz 400Hz |
| RF INPUT CONNECTOR: | N or BNC FEMALE |
| RF OUT CONNECTOR: | N - FEMALE |
| OP. TEMPERATURE: | –10 - +45°C |
| MAXIMUM UMIDITY: | 90% non condensing |
| AC SUPPLY: | 110/240 VAC |
| DIMENSION: | 2 unit rack 19”, 430mm depth |
| WEIGHT: | 10 Kg (ASG) 12 Kg (ASG-H) 14KG (UH) |
