30 Watt FM Transmitter SYNAPSE 30W

SYNAPSE combine low energy consumption, exceptional reliability, and advanced connectivity in a Compact design. Their sound is warm and clear, thanks to a high-fidelity design with very low distortion, excellent stereo separation, and a high signal-to-noise ratio.

Our SYNAPSE FM Transmitter!!!

PRODUCT SPECIFICATION AND PRICING

Product Name: SYNAPSE
Rated Power Output: 30
Frequency Range: 88-108MHz (other bands available)
List Price (EUR): 1.700
Discounted Price: 1.360
Delivery Time: On stock

MAIN KEY FEATURES

Compact architecture
Extreme robustness, high reliability, and easy maintenance lower ownership cost
Remote Access via HTML5 Web, TCP/IP, SNMP, Email, and Telegram
Weekly Power Derating Scheduler optimizes energy consumption by allowing multiple configurable power settings for each day.
Unmatched Audio Fidelity and versatile Audio Inputs
High efficiency with up to 88% RF performance and low power consumption.
High SNR (85 dB), stereo separation (65 dB), ultra-low distortion (0.01%)
One-band processor with soft limiter: ensuring high volume and big sound
6th-generation 50V LDMOS with >65:1 VSWR tolerance and high ruggedness for FM and ISM applications
Standards Compliance: Meets ETSI, CCIR, FCC requirements.
Aluminum body, tropicalized PCBs, dust filter, and air-ducted design protecting PCBs from corrosion
Planar RF amplifier on copper carrier for improved heat dissipation and simplified maintenance

Available Options

High-performance stereo encoder.
Automatic audio input backup.
Digital audio inputs: AES/EBU, IP Streaming (AoIP), USB Pen Drive playback.
Dynamic RDS encoder with TMC function
Web TCP/IP and SNMP connectivity for remote access
Frequency bands starting from 60MHz (Chile and Brazil), including Japanese (JPN) and Russian (OIRT 66-74MHz) standards.
External clock input for SFN synchronization
Digital composite input at 192kHz

PRODUCT SPECIFICATION AND PRICING

Product Name: SYNAPSE
Rated Power Output: 30
Frequency Range: 88-108MHz (other bands available)
List Price (EUR): 1.700
Discounted Price: 1.360
Delivery Time: On stock

TECHNICHAL CHARACTERISTICS

Output Power (W)

Output Power: 30W
Max Output Power: 33
OutputConnector: N

Electrical

Overall Efficiency: 65%
RF Efficiency: 88%
Power Consumption: 46W
AC Power Factor: 0.98%

AC Mains Config 1ph 220VAC

2-wire plus safety ground
AC Input Voltage (V): 220
Total Amps (A): 0
AC FuseSize (A): 0
Possible AC Conductor Size AWG: 13
Possible AC Conductor Size mm2: 2.5

Cooling

CoolingType: Forced Air
CoolingAirVolumem3h: 7m3h
HeatDissipationBTU: 54BTU
Heat Dissipaiton: 16W
AirConditioningLoad: 5W

Mechanical

Number Of Cabinets: 1
Cabinet type: 19U
Rack Units Height: 1U
Width Front Pannel: 483 mm
Width Front Pannel: 448 mm
Depth: 385mm
Height: 43.5mm
Weight: 4kg

Packaging

Package Width: 550mm
Package Depth: 480mm
Package Height: 120mm
Package Weight: 5kg

Environmental

Altitude: 4.000m
Ambient Temp Range: 0 to 45deg de-rated 2deg per each 300msl
Humidity: 95% noncondensing

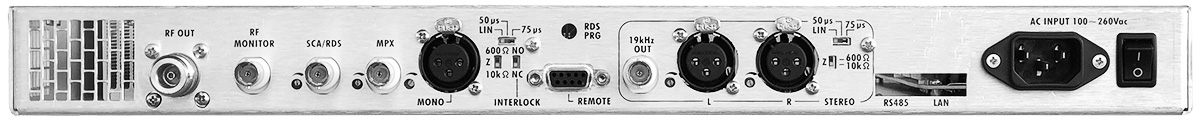

AXON — All connections you may need!!!

RADIOELECTRICS CHARACTERISTICS

Radio Frequency

Frequency Range: 87.5 ÷ 108.00 MHz, Programmable in 10 KHz steps
Range of adjustment from 100 to maximum power.
On request 66 ÷ 74 MHz (OIRT), 76 ÷ 90 MHz (JPN) Bands.
Frequency Stability: better than ±150Hz from -10 to +50°C
Modulation capability max deviation: +/-150kHz.
Frequency Control: Synthesizer µprocessor control.
Output Impedance: 50 ohm.
Display: forward/reflection power and modulation indicator
Type of Modulation: Direct frequency modulation of carrier frequency. F3E Stereo with Subcarrier and Mono.
Lock in Time: Typ. 4 second.
Off Lock Attenuation: ≥ -80 dBc.
Modulation Mode: Mono, Stereo, Multiplex, SCA, RDS, Aux.
Asynchronous AM S/N Ratio: -60 dB below reference carrier. 100% AM modulation @ 400 Hz, without FM modulation.
Synchronous AM S/N Ratio: -60 dB below reference carrier. 100% AM modulation@ 400 Hz with FM modulation ±75 KHz @ 400 Hz.
RF Harmonics: Exceeds ETSI/EBU/CCIR/FCC requirements. better than 84 dbc
RF Spurious: Exceeds ETSI/EBU/CCIR/FCC requirements. better than 84 dbc
Output power on/off and adjustable from front panel and remotely.
Overall Efficiency up to 80%.
Monitor RF: -60 dBc, BNC connector
VSWR: 1.5:1 Maximum with automatic fold-back at higher VSWR

Monaural Operation

Audio Input Impedance: 600 ohm balanced, 15 Kohms unbalanced.
Audio Input Level: -6 to +12 dBm. (Other range on request)
Input Connector: XLR female.
Audio Frequency Response: ±0.15 dB, 30 Hz to 15 KHz.
Total Harmonic Distortion + Noise: 0.03% @ 400 Hz
Intermodulation Distortion: 0.03%, 1 KHz/1.3 KHz, 1:1 ratio
Transient Intermodulation Distortion: 0.03%, 2.96KHz square wave and 14 KHz sine wave.
FM S/N Ratio: -89 dB RMS detector, -85 dB below ±75 KHz deviation, 50 µs de-emphasis, weighted.
Pre-emphasis: Flat(0)/50/75 µs selectable from front panel.

Multiplex Operation

Composite Input Impedance: 5 Kohm unbalanced.
Composite Input Level: 3.5Vp-p for ±75KHz deviation.
Input Connector: BNC female.
Composite Amplitude Response: : ≤ ± 0.1dB, from 30Hz to 53kHz
Total Harmonic Distortion + Noise: 0.03% @ 400 Hz
Intermodulation Distortion: 0.03%, 1 KHz/1.3 KHz, 1:1 ratio
Transient Intermodulation Distortion: 0.03%, 2.96 KHz square wave and 14 KHz sine wave.
FM S/N Ratio: -89 dB RMS detector, -85 dB below ±75 KHz deviation, 50 µs de-emphasis, weighted.

Stereo Operation

Audio Input Impedance: 600 ohm balanced, 15 Kohm unbalanced.
Audio Input Level: -12 to +12 dBm.
Input Connector: XLR female.
Audio Frequency Response: ±015 dB from 30 Hz to 15 KHz.
Total Harmonic Distortion + Noise: 0,03% @ 400 Hz
Intermodulation Distortion: 0,02%, 60Hz /7kHz 4:1 ratio +4dBu
Transient Intermodulation Distortion: 0.03%, 2.96 KHz square wave and 14 KHz sine wave.
FM S/N Ratio: -85 dB RMS detector, -82 dB below ±75 KHz deviation, : 50 µs de-emphasis, weighted.
Stereo Separation: 30÷80 Hz ≥ -53 dB, 80Hz÷15 KHz ≥ -65 dB (Typ. 70 dB).
Crosstalk attenuation: Main to Sub -55 dB 30 Hz to 15 KHz :
38 KHz Suppression: ≥ -70 dB (typ. -85 dB).
Pilot Frequency: 19 KHz ± 1 Hz
Phase Pilot: ± 2° adjustable
Output Pilot: 1 Vpp., BNC female
Audio Filter Attenuation: ≥ -55 dB @ 19 KHz, -45 dB 20 KHz to 100 KHz.
Modes: Stereo, Mono L+R, Mono L, Mono R
Pre-emphasis: Flat(0)/50/75 µs selectable from front panel.

.

AES/EBU Operation

Input Level: -10dBfs to 0dBfs
Input Connector: XLR female, optical TOS-LINK.
Input Impedance: 110 ohm.
Data Format: S/PDF,AES/EBU, IEC958, EIAJCP340/1201.
D/A Converter: 24 bit.
Sampling Frequency: from 32 to 96 KHz with automatic selection
Stereo separation (crosstalk): ≥50dB,100Hz to 5kHz
Amplitude response: ≤ ± 0.1dB, from 30Hz to 15kHz
FM S/N Ratio: -85 dB below ±75 KHz deviation, 50 µs de-emphasis, weighted.

SCA, RDS, AUX Operation

Input Connector: BNC female
Input Impedance: 3 Kohm.
Input Level: -3 to +6 dBm.
Frequency Response: ±0.2 dB, 40 KHz to100 KHz.
Input Connector: BNC female. Most SCA, RDS, AUX, performance parameters are determined primarily by the generator used.
