STUDIO SMART

STUDIO SMART
Radio studio package

Complete FM radio studio packages

Complete redundant solution, with both On-Air as well as Production

Studio Smart is a complete redundant solution, with both On-Air as well as Production, which can also be used as a backup study. An essential production studio, appropriate for commercial editing, music recording, programming, etc.

The idea of the Smart Studio is to provide a studio solution that is ON-Air as well as Production. Both studies are connected to the network, so the production studio can be used as On-Air backup through a silence detector and a step switch. The automation workstation all-in-one for 24 / 24h programs includes all necessary modules for the operation of one or more radios: Playout, streaming, commercial planning, registration, modification and post-production.

All equipment is of very high quality, produced by the best brands on the broadcast market. A CD player with USB and MP3 is included. A durable anti-scratch desk with 19 "rack cabinets built to hold all the equipment, ideal for the 24 / 24h use of the broadcast. Service of pre-assembly, cables, connections, and one year of remote support are included. Our team of experts is at your disposal for installation and training.



ON AIR STUDIO

Article Description Quantity
Headphones Studio Stereo Headphones, Semi Open, 55 Ohms, 25000 Hz – 15 Hz, Max. input level: 200 mW. 3
Microphone Cardioid Condenser Studio Microphone, Cardioid Condenser Element, Spider shockmount, Low Frequency Roll-Off, 20dB Pad. 3
Telephone Telephone set black with incoming call light indicator, Last number redial, Wall mountable, Message waiting indicator, Adjustable earpiece volume: 5 levels. 2
Chair Chair for Broadcast desk, technicians and/or guests. 3
Mic Arm Mic Arm Table or Adjustable 3
Mixer Broadcast mixer with:8 IN, 6 MIC/LINE, 2 TEL. HIBRYD, 1 USB, 1 BLUETOOTH. Digital display with clock and timer. 6 OUT. Talk back. Exetrnal power supply 1
ON AIR Light Professional ON AIR Light for Broadcast Facilities. Polycarbonate Graphic Panel, Laser cut. RJ45 connection, operating and Output Voltage 12 Vdc. Current 330 mA. Input Voltage 100-240Vac. Product Dim.: W 38,3cm D 4,2 cm H 13,5 cm 1 Kg. 2
Audio Processor 3-Bands Audio Processor with Built-in RDS encoder & stereo Generator. Graphic Display, incremental encoder. 60dB 30- 15KHz Stereo separation, RDS 25 PS, 25 Radiotext (64 fonts), 24 AF lists. Inputs: SCA, analog on blanced XLR. 1
Headphones Distributor 4x Independent stereo inputs with unsymmetrical jack sockets; Separate volume control for every channel; Easily expandable - Up to 4 devices can be operated together; Shielded internal double- regulated power supply with voltage selector for 115V / 60Hz or 230V / 50Hz; 19", 1 U 1
Monitor LED Monitor 23.6" TN Full HD 1920x1080Display, 5ms, 1000:1, 250cd/m2, D-Sub, DVI I/O Port.VGA DVI-D HDMI 2
CD Player "Cd Player WAW/MP3 with USB , jog dial for search/scan, Auto-cue Fader start play 1
Broadcast Desk Broadcast desk : anti-scratch surface desktop, 15U side-rack, cylindrical legs, one upper rack (8 or 4 U), plus additional desk for guests with legs and place for hdp distributor 1
Active Speaker Pair of Active studio Monitor, LF Driver: 4,5" (114 mm) Kevlar, HF Driver: 1" (25 mm) silk dome, Frequency Response: 70 Hz - 20 kHz, Crossover Frequency: 2,8 kHz, LF Amplifier Power: 25W for speaker, Peak SPL (@ 1 meter): 100 dB, Input Impedance: 10 kOhms 1
Prewiring Prewiring ON AIR STUDIO including: cables, connectors, interconnection cables (100 Mt.Balanced audio cable, 100 MPX cable, 100 Mt. Lan Cable) and factory test. 1
PC - WORK STATION Work Station with Playout Standard SW, library & ingest, playlist, adv. management, runtime scheduler, audio editing, Instant player & rec. 4U RK PC - Win 64bit i5 8GB RAM HD SO 250GB 2X2TB HD. Audio Card 4 stereo XLR OUT Bal. XLR 4 stereo XLR IN Bal. with cable 1
Switch Hub 8-Port Desktop Gigabit Ethernet Media Switch for multiple media devices connection to networks at blazing-fast Gigabit simultaneously. 1

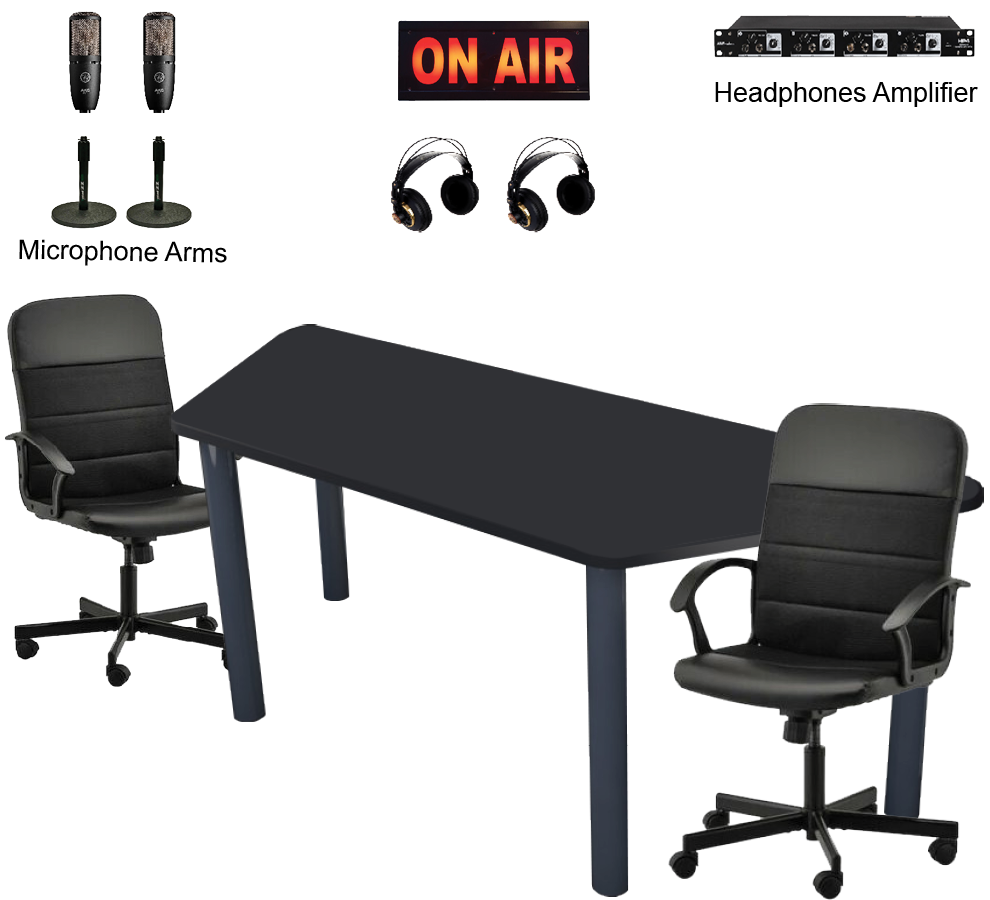

PRODUCTION STUDIO

Article Description Quantity
Headphones dynamic headphones, 200 mW, 16 to 20000 Hz, 112 dB SPL/V, 32 Ohms, Cable Length 3 m, Stereo plug – 3.5mm (1/8-inch) with 6.3 mm (1/4”) screw- on adapter, Finish matte black, Net Weight 200 g 2
Microphone Cardioid Condenser Studio Microphone, Cardioid Condenser Element, Spider shockmount, Low Frequency Roll-Off, 20dB Pad. 2
Telephone Telephone set black with incoming call light indicator, Last number redial, Wall mountable, Message waiting indicator, Adjustable earpiece volume: 5 levels. 2
Chair Chair for Broadcast desk, technicians and/or guests. 2
Mic Arm Mic Arm Table or Adjustable 2
Mixer "Professional Modular Broadcast mixer FRAME 16-12 Channel, 4 Micro/Line input modules with equalization, 4 Line/Line input modules with equalization, 2 Telephone Hybrid with equalization & echo canc.Talkback, Out: Master, 2 X SUB, REC, Monitor 1
ON AIR Light Professional ON AIR Light for Broadcast Facilities. Polycarbonate Graphic Panel, Laser cut. RJ45 connection, operating and Output Voltage 12 Vdc. Current 330 mA. Input Voltage 100-240Vac. Product Dim.: W 38,3cm D 4,2 cm H 13,5 cm 1 Kg. 1
Audio Processor 3-Bands Audio Processor with Built-in RDS encoder & stereo Generator. Graphic Display, incremental encoder. 60dB 30- 15KHz Stereo separation, RDS 25 PS, 25 Radiotext (64 fonts), 24 AF lists. Inputs: SCA, analog on blanced XLR. 1
GSM Gateway GSM gateway, Dual-Band 900/1800 MHz, High audio quality. Incl. external antenna. 2
Headphones Distributor 4x Independent stereo inputs with unsymmetrical jack sockets; Separate volume control for every channel; Easily expandable - Up to 4 devices can be operated together; Shielded internal double- regulated power supply with voltage selector for 115V / 60Hz or 230V / 50Hz; 19", 1 U 1
Monitor LED Monitor Acer 23.6" TN Full HD 1920x1080Display, 5ms, 1000:1, 300cd/m2, DVI I/O Port.VGA DVI-D HDMI 2
Broadcast Desk Broadcast desk with anti-scratch surface desktop, 15U side-rack, cylindrical legs, incl. Rack 23U (8U + 15U) 1
Active Speaker Pair of Active studio Monitor, LF Driver: 4,5" (114 mm) Kevlar, HF Driver: 1" (25 mm) silk dome, Frequency Response: 70 Hz - 20 kHz, Crossover Frequency: 2,8 kHz, LF Amplifier Power: 25W for speaker, Peak SPL (@ 1 meter): 100 dB, Input Impedance: 10 kOhms 1
Prewiring Prewiring PRODUCTION STUDIO including: cables, connectors, interconnection cables and factory test. 1
UPS 1500 VA 10' Autonomy, 3x12V 9Ah. ON-Line Technology Dual Conversion, Wide input range, programmable output plugs, LCD Display, Frequency Converter 50/60 Hz function, EPO (Emergency Power Off) Function, Automatic/manual By-pass. 2U rack. 1
PC - WORK STATION WS with Playout Standard SW, library & ingest, playlist, adv. management, runtime scheduler, audio editing, Instant player & rec. 4U RK PC - Win 64bit i5 8GB RAM HD SO 250GB 2X2TB HD. Audio Card 4 stereo XLR OUT Bal. XLR 4 stereo XLR IN Bal. with cable 1
